Crawler crane · PM50/0794/2026

Kobelco BMS1200HD Crawler Crane with 120 ft Boom

Archived tender Tender closed 10 Sep 2026

Specifications

Make	Kobelco
Model	BMS1200HD
Serial no.	JB02-01001
Year of manufacture	2011
Max. rated load	120 ton @ 5 m
Boom length	120 ft
Boom configuration	Base (25') + 1 x 10' + 1 x 20' + 1 x 30' + Front (35')
Engine model	MTU 12V2000
Engine power	634 kW @ 1,800 rpm
Drum rope size	Main hoist 36 mm / Auxiliary hoist 36 mm / Third hoist 30 mm / Boom hoist 20 mm
Line pull (first layer)	32 ton (max.)
Line speed (main, aux. and third hoist)	110/3, 110/3, 95/3 m/min
Line speed (boom hoist)	48/2 m/min
Swing speed	2.1 rpm
Travelling speed	1.2 / 0.8 km/h
Working hours	31,956 hrs

*Rated capacity depends on configuration and operating radius. See the listing for details. Specifications are transcribed from the tender documents as printed and have not been independently verified.

Scope of supply

Item	Description	Qty	L × W × H (mm)	Unit weight (kg)	Total weight (kg)

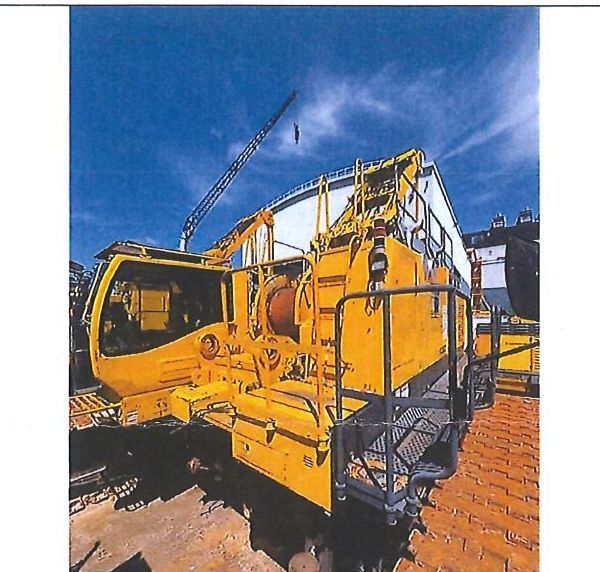

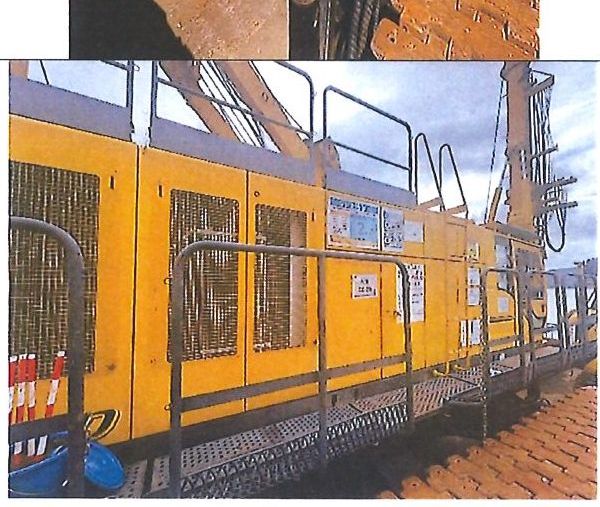

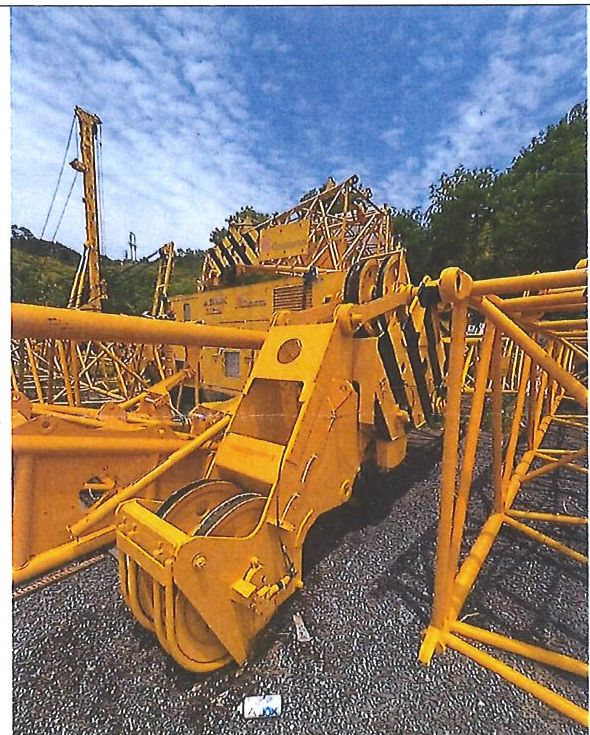

1	BMS1200 Basic Machine (Gantry, Crawler with crawler shoe, Crane backstop, Third winch, Translifter)	1	9530 x 6320 x 4010	74,100	74,100
2	Counterweight (1)	1	5000 x 940 x 940	12,500	12,500
3	Counterweight (2)	1	5000 x 940 x 750	10,000	10,000
4	Counterweight (3)	1	5000 x 940 x 920	10,000	10,000

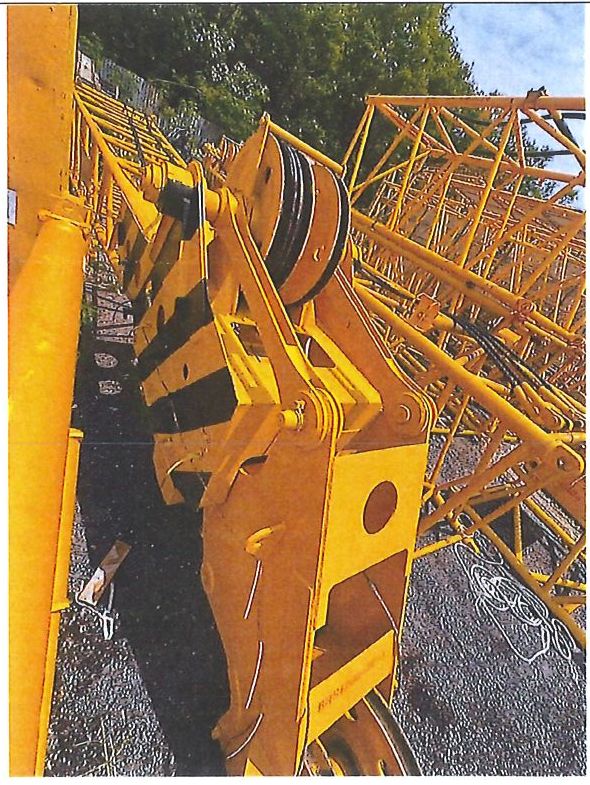

5	Boom tip	1	11210 x 1980 x 1980	2,840	2,840
6	Boom base	1	7840 x 2130 x 2410	2,450	2,450

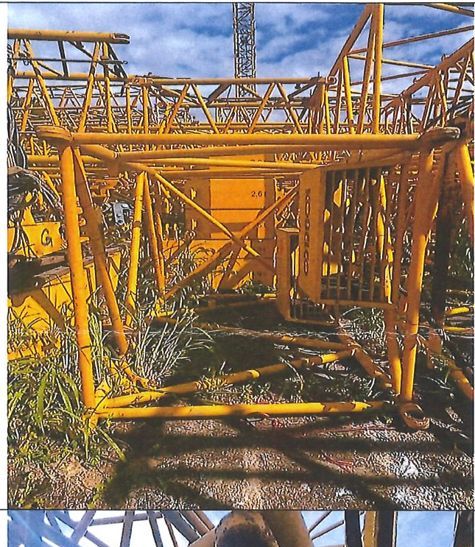

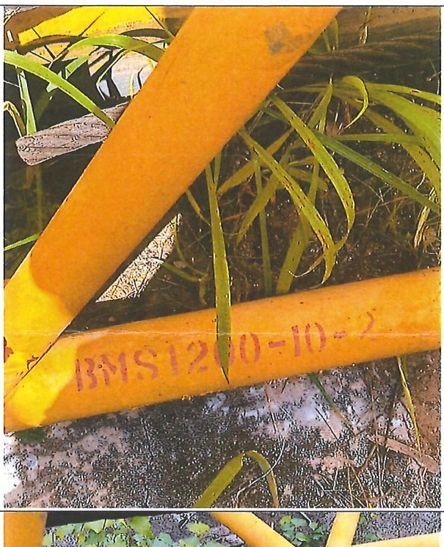

7	Boom insert (10')	1	3180 x 1980 x 1980	500	500
8	Boom insert (20')	1	6220 x 1980 x 1980	810	810
9	Boom insert (30')	1	9270 x 1980 x 1980	1,130	1,130
10	Auxiliary Sheave	1	2460 x 770 x 1280	1,290	1,290

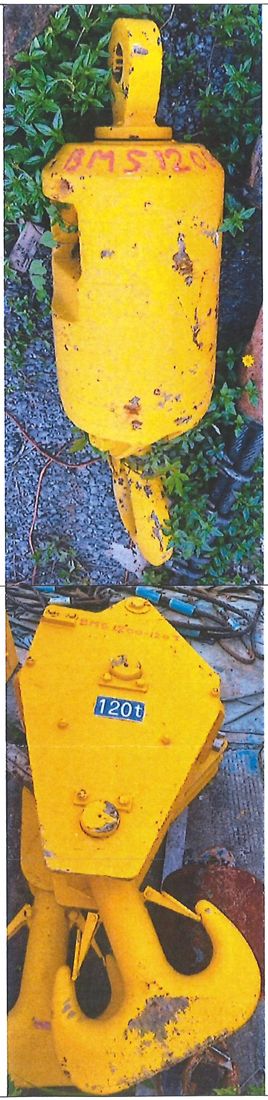

11	120-ton hook block (4 Sheave)	1	900 x 450 x 2150	1,730	1,730
12	Ball hook	1	Dia.370 x 1270	460	460
Total		12			117,810

Notes

The tender document heading gives the model as BMS1200HD; its specification table gives BMS1200.
