Crawler crane · PM50/0795/2026

Liebherr LR1280 Crawler Crane with 46.4 m Boom

Archived tender Tender closed 11 Sep 2026

Specifications

Make	Liebherr
Model	LR1280
Serial no.	136.143
Year of manufacture	2011
Max. rated load	280 ton @ 4.3 m
Boom length	46.4 m
Boom configuration	Base (7.0 m) + 1 x 3.0 m + 1 x 6.0 m + 2 x 11.7 m + Front (7.0 m)
Engine model	Liebherr D 9508 A7
Engine power	603 ps (450 kW) @ 1,900 rpm

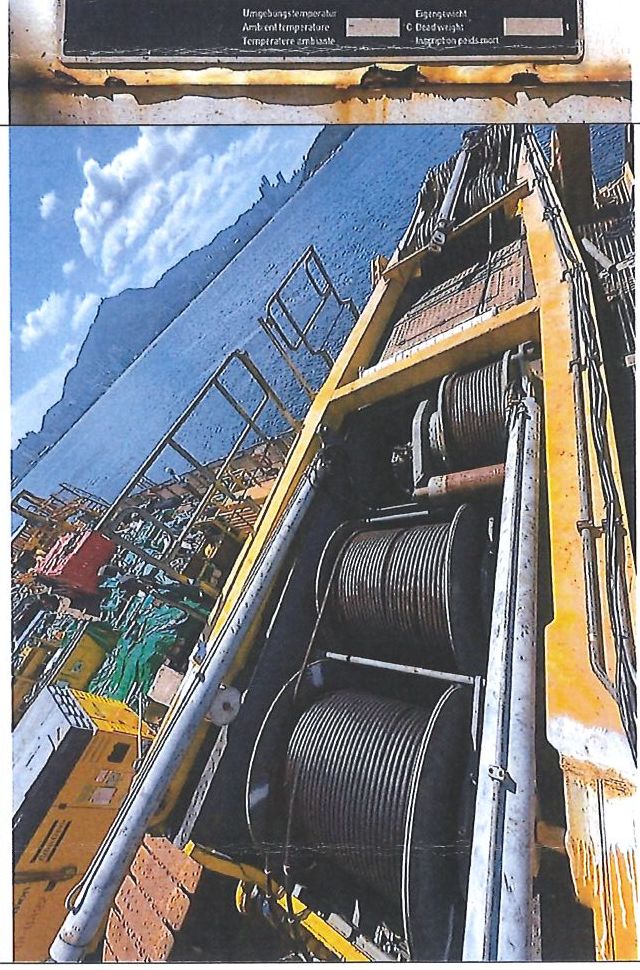

Drum rope size	Main hoist 28 mm / Auxiliary hoist 28 mm / Boom hoist 24 mm
Line pull (first layer)	215 kN
Line speed (main, aux. and third hoist)	0-115 m/min
Line speed (boom hoist)	85 m/min
Swing speed	0.4 / 1 / 1.76 rpm
Travelling speed	0.58 / 1.4 km/h

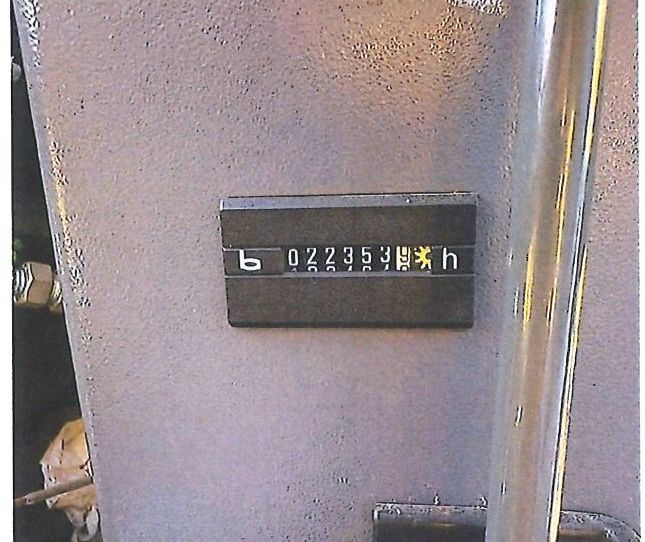

Working hours	22,354 hrs

*Rated capacity depends on configuration and operating radius. See the listing for details. Specifications are transcribed from the tender documents as printed and have not been independently verified.

Scope of supply

Item	Description	Qty	L × W × H (mm)	Unit weight (kg)	Total weight (kg)

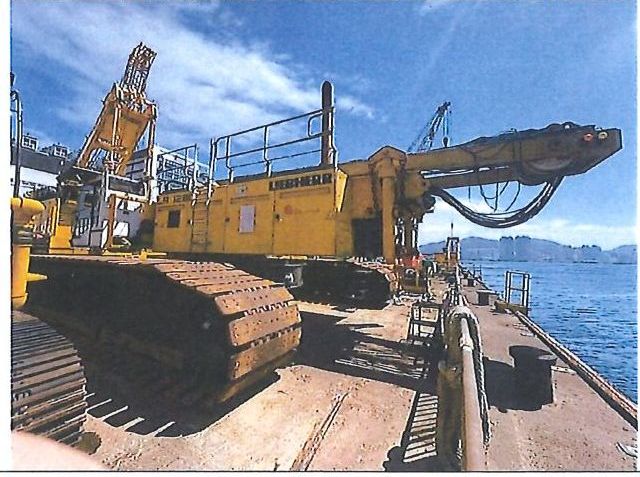

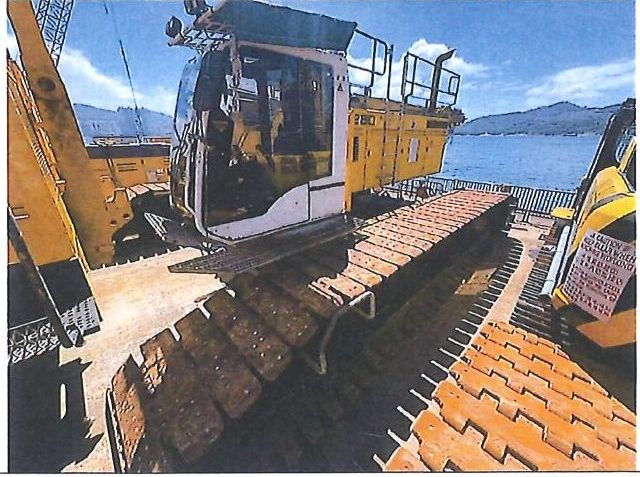

1	LR1280 Basic Machine (Gantry)	1	12,700 x 3,000 x 3,250	42,828	42,828
2	Crawler side frame	2	9,108 x 1,200 x 1,460	21,120	42,240

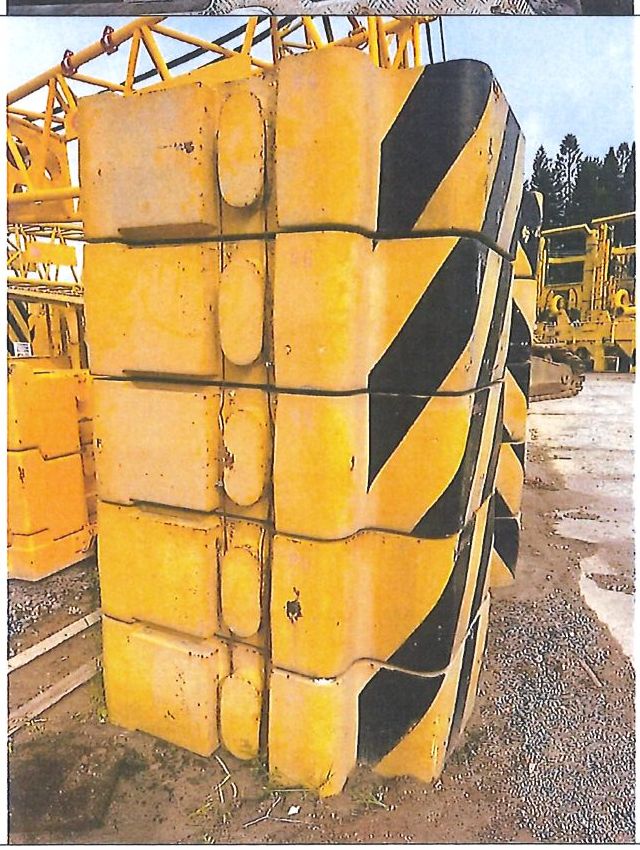

3	Carbody counterweight	4	5,040 x 1,140 x 350	9,000	36,000
3	Basic counterweight slab	1	5,480 x 1,660 x 1,100	13,300	13,300

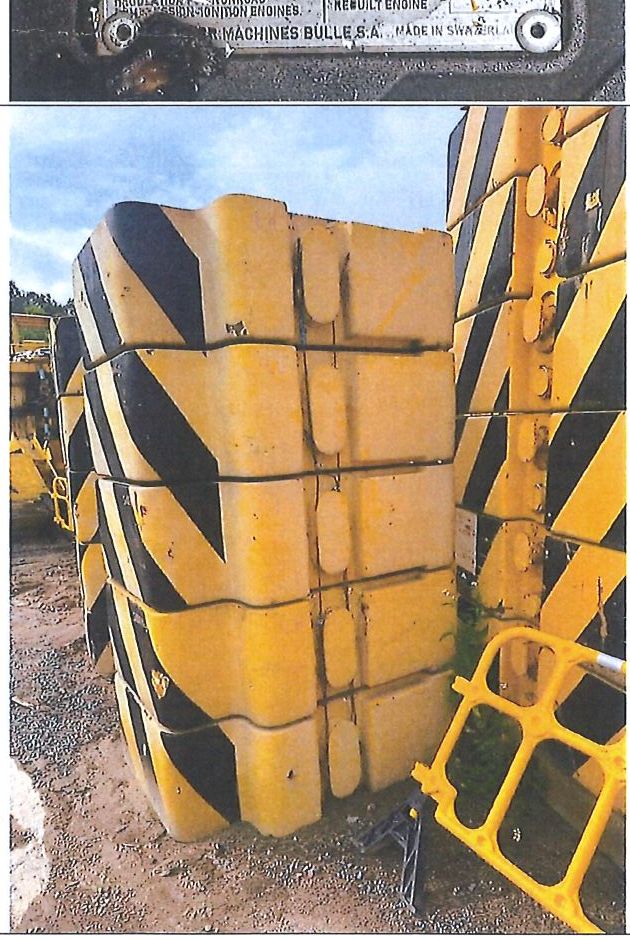

4	Ballast slab (1)	2	5,480 x 1,660 x 340	10,600	21,200
5	Ballast slab (2)	10	1,300 x 1,360 x 465	5,100	51,000

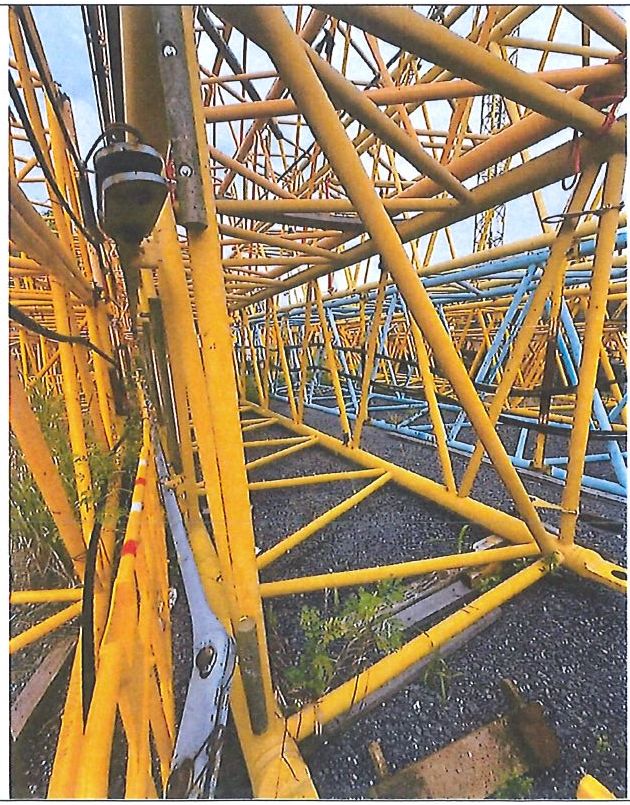

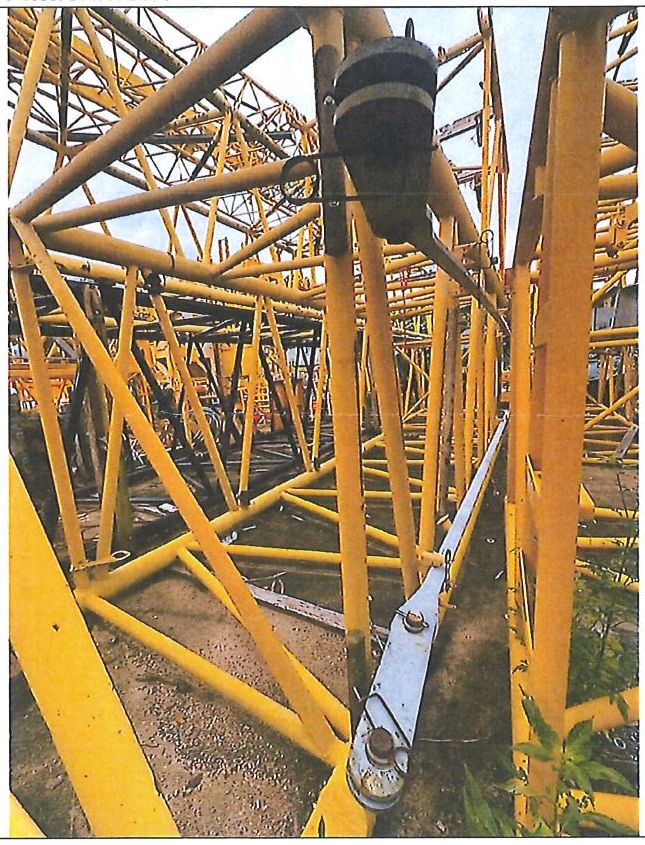

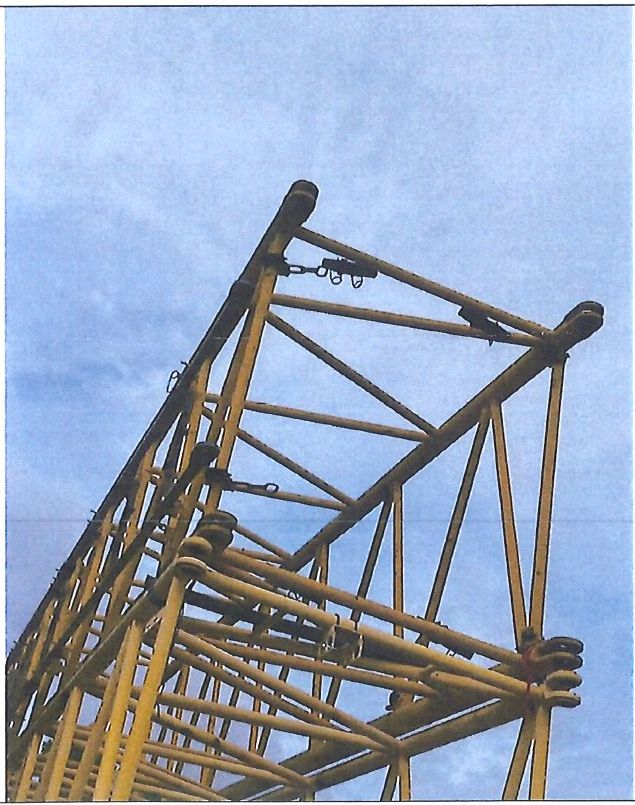

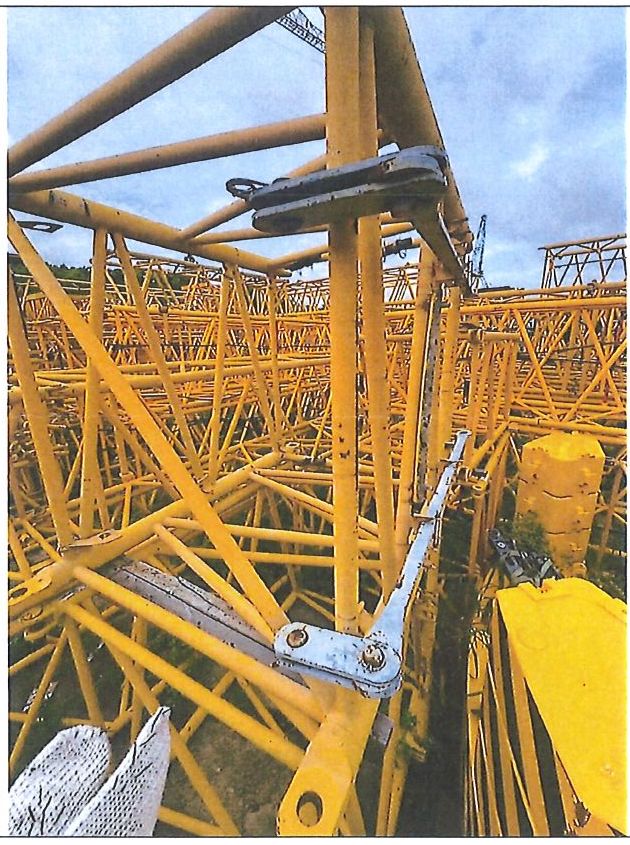

6	Boom base section	1	7,350 x 2,420 x 2,500	4,000	4,000
7	Boom insert (3.0m)	1	3,250 x 2,420 x 2,370	1,130	1,130
8	Boom insert (6.0m)	1	6,250 x 2,420 x 2,370	1,875	1,875
9	Boom insert (11.7m)	2	11,920 x 2,420 x 2,370	2,885	2,885

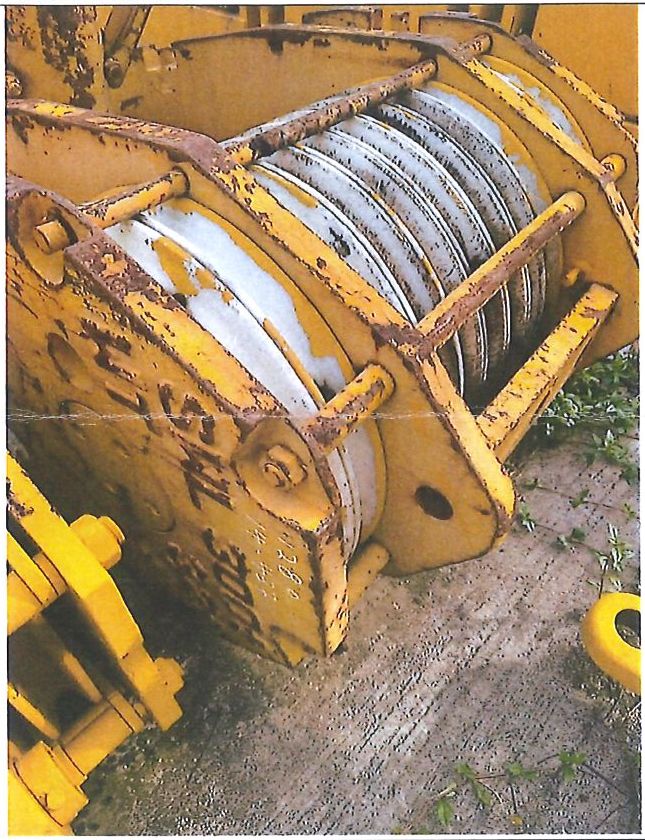

10	300-ton hook block	1	820 x 1,227 x 2,523	3,200	3,200

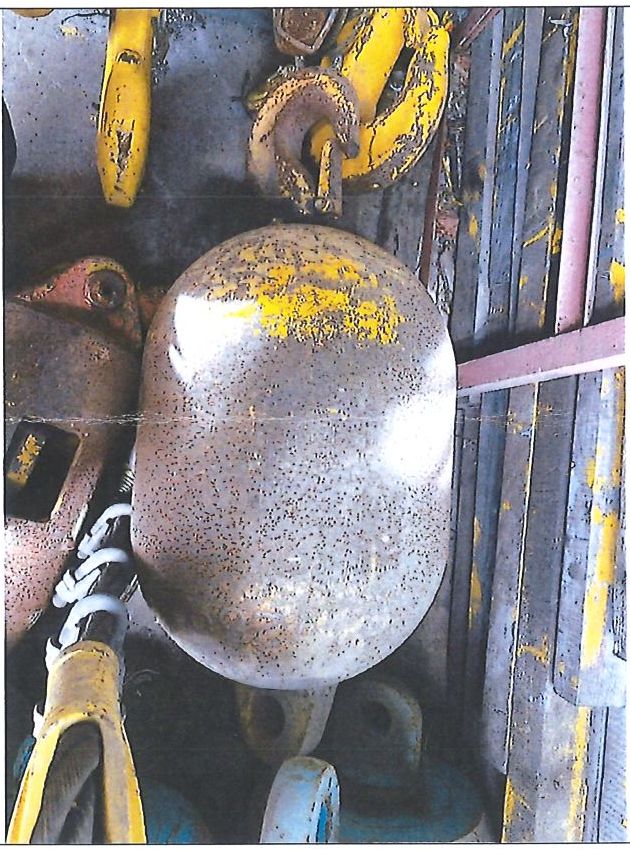

11	16-ton ball hook	1	Dia. 500 x 1,115	900	900
Total		27			220,558

Item numbers and totals are transcribed exactly as printed in the tender document.
